The former QUICK Knurling Tools of SWAROVSKI OPTIK KG (Absam, Austria) becomes QUICK Tooling GmbH. QUICK knurling tools feature convincing and uncompromising quality down to the smallest detail. They meet the most stringent requirements and overcome the most difficult tasks. As an exclusive high-end brand for tools of exceptional precision, at QUICK, design is combined with functionality and innovation with experience.

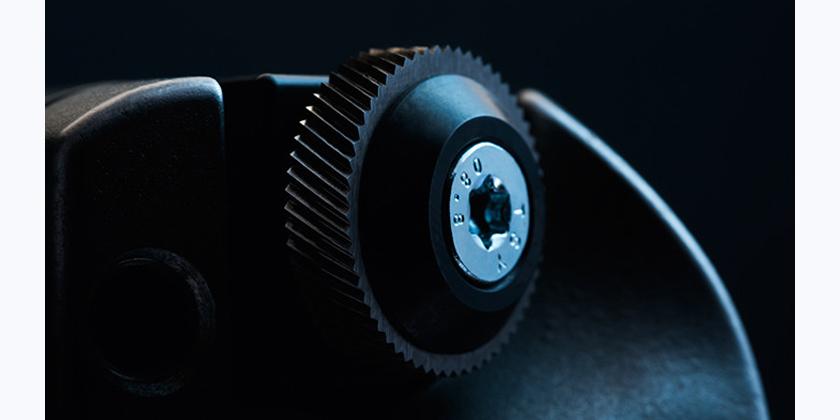

CUT KNURLING
Maximum precision and surface quality; it is even possible to knurl thin-walled workpieces with no deformation. Another advantage is the time saved due to the higher cutting speed and feed rate. Virtually any material can be machined, including grey cast iron and plastic. However, knurling to the shoulder of a workpiece is possible only to a limited extent.

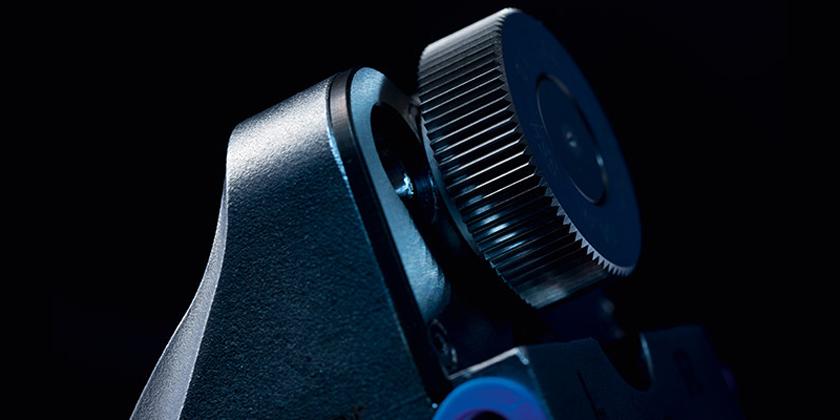

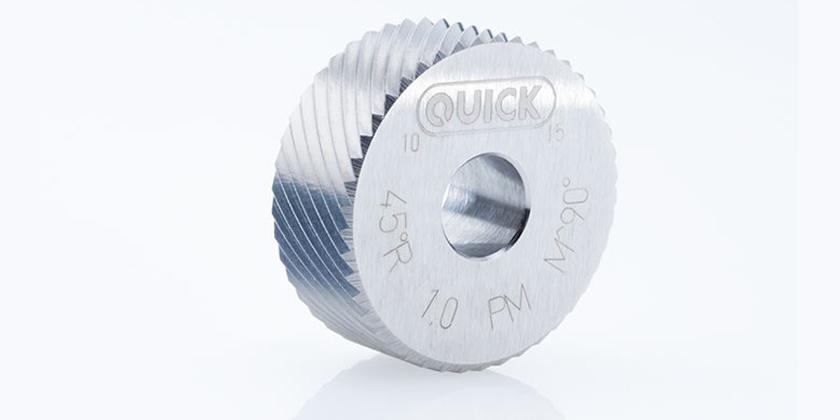

FORM KNURLING
Processing of material by cold-forming. All knurling
profiles according to DIN 82 are possible and can be applied at any location on
the tool. Knurling all the way to the collar is no problem.
The surface of the workpiece is compressed by the forming process; the outer
diameter increases slightly. Form knurling in the case of thin-walled
workpieces and visible knurls is not generally recommended.
CHOOSE THE APPROPRIATE
TECHNOLOGY
CUTTING OR FORMING?
Knurling technology is
divided into two processes: form knurling and cut knurling. Both processes have
their special applications, areas of utilisation and limitations. While one
advantage of form knurling is the simplified application of the technology, cut
knurling is always the preferred process whenever uncompromising surface
quality is required.

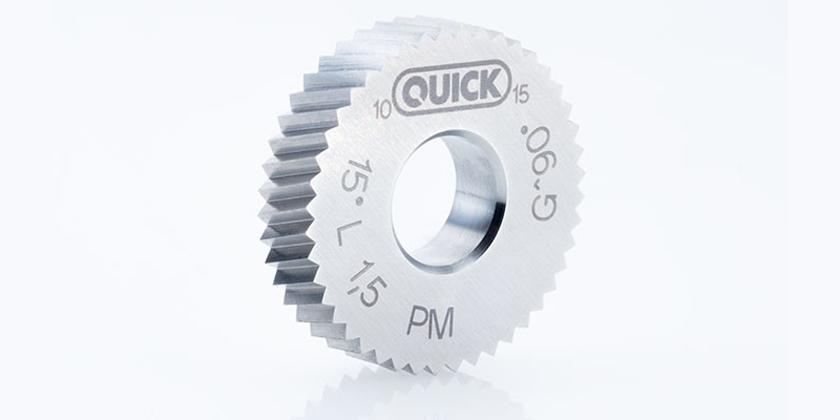

CUT KNURLING
Application:
- Ø Knurling
of thin-walled workpieces
- Ø For
small workpiece diameters
- Ø High-precision
machining of virtually all materials (ideal for visual profiles)
Advantages:
- Ø Time
savings due to high cutting speed and feed rate
- Ø Minimal pressure on workpiece and machine
- Ø Low surface compression, no change in the outer diameter
FORM
KNURLING
Application:
- Ø Knurling
is possible at any location on the workpiece
- Ø Machining
of workpieces suitable for cold forming
- Ø Enlargement
of the outer diameter due to material displacement
Advantages:
- Ø All
knurling profiles according to DIN 82 can be produced.
- Ø Knurling
to the collar and at every location on the workpiece is possible
- Ø Short set-up times, user-friendly handling
